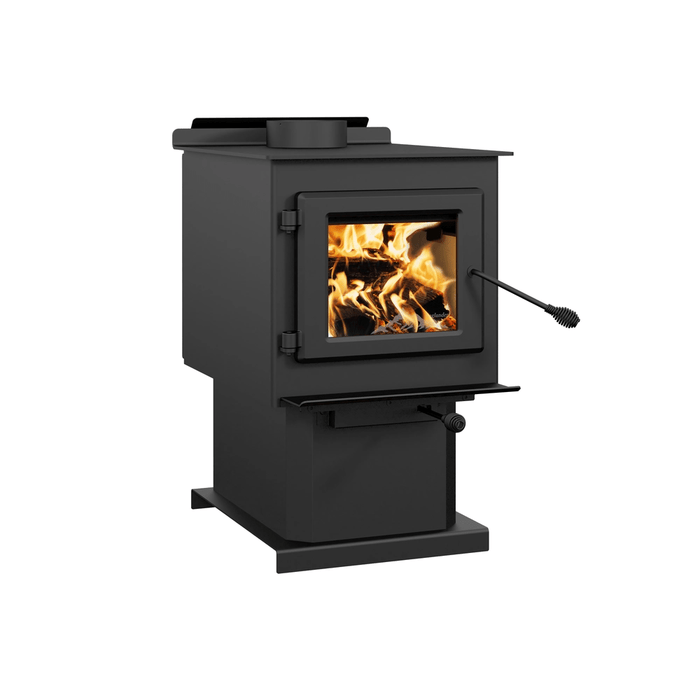

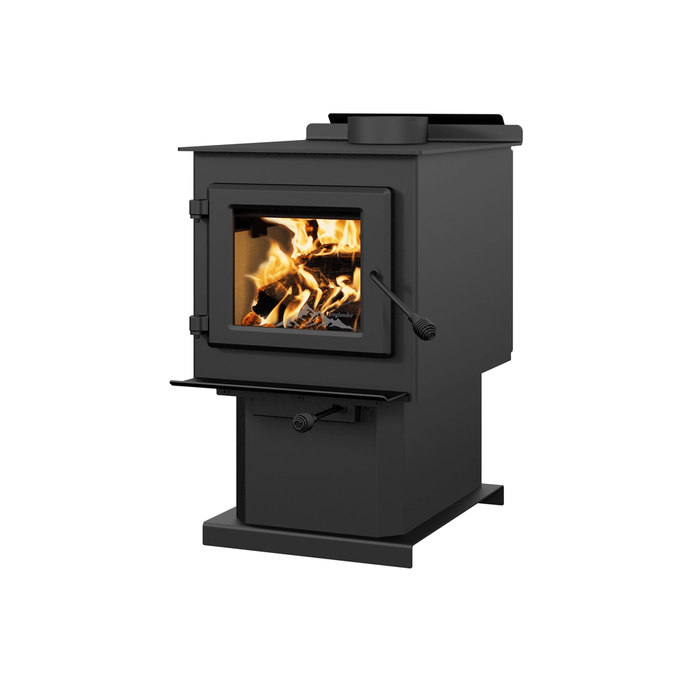

Blue Ridge 100 Wood Stove by Englander
Dimensions: 17 1/2" L x 12" W x 4 3/4" H
- Flexible positioning for ideal fit
- Enhances heat and combustion
- Durable and easy to clean
- Maximizes firewood burning efficiency
- Supports logs for stable burning
- Prevents logs from rolling or shifting
- Increases overall fireplace safety
- Helps maintain consistent heat output
Description
The Englander Blue Ridge 100 Wood Stove, our smallest unit in the series, is ideal for heating houses up to 1,200 square feet. This EPA-certified wood stove produces an amazing 45,000 BTU/h while emitting only 1.8 g/h of particulate matter. Its combustion chamber bottom is deeper than that of other models in its class, allowing for a larger build-up of ashes and the ability to clear them less regularly. a sturdy and uncomplicated model.
Included: pedestal, ash lip, air intake damper & rear air deflector
▪ High efficiency 1.8 ft³ firebox, ideal for tight spaces
▪ Up to 5 hours burn time
▪ Steel top reinforced with a stainless steel heat shield
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Certified for mobile home and alcove installation
▪ Qualifies for the 30% US tax credit
Dimensions
- Width- 18 1/2"
- Height- 30 5/8"
- Depth- 29"
Heating Specifications
- Maximum Burn Time - 5 hours
- Approximate Square Footage Heated - 250 - 1,200 ft²
- Flue Collar - 6.0 in. round
EPA and Safety Compliance Specifications
- EPA Compliance Status - The Blue Ridge 100 Wood Stove is certified to comply with 2020 particulate emission standards using cordwood.
- EPA Test Standard - ASTM E3053‐17, EPA Alt 125, CSA B415.1‐10
- Particulate Emissions - 1.8 grams/hr
- CO Emissions - 74 g/h
- Heat Output Range - 12,124 – 26,700 Btu/hr
- Efficiency - 74% (HHV)
- Certified To - UL 1482‐2011(R2015) and ULC‐S627‐00(R2016)
Specifications
| Fuel type |
Dry cordwood (16" recommended) |
| Recommended heating area(9) |
250 - 1,200 ft² |
| Overall firebox volume |
1.8 ft³ |
| EPA loading volume |
1.55 ft³ |
| Maximum burn time(9) |
5 h |
| Maximum heat output-dry cordwood(4) |
45,000 BTU/h (13.2 kW) |
| Minimum overall heat output rate(4)(5) |
12,124 BTU/h (3.55 kW) |
| Maximum overall heat output rate(4)(5) |
26,700 BTU/h (7.83 kW) |
| Average overall efficiency-dry cordwood (HHV)(5)(6) |
74% |
| Average overall efficiency-dry cordwood (LHV)Higher Heating Value of the fuel.(5)(7) |
79% |
| Optimum efficiencyAs measured per CSA B415.1-10 stack loss method.(1)(2) |
80% |
| Optimum heat transfer efficiency(8) |
79% |
| Average particulate emission rate(3) |
1.8 g/h |
| Average CO(10) |
74 g/h |
Clearance to Combustibles
|
Canada |
United States |
|
SINGLE WALL PIPE |
DOUBLE WALL PIPE |
SINGLE WALL PIPE |
DOUBLE WALL PIPE |
| Clearance - Back wall |
14" |
6" |
12" |
6" |
| Clearance - Side wall |
18" |
18" |
18" |
18" |
| Clearance - Corner |
11" |
7" |
11" |
7" |
| Clearance - Base of the unit to ceiling** |
84" |
84" |
84" |
84" |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
Warranty
Limited 5-year warranty (see owner's manual)
Installation and Operation Manual
