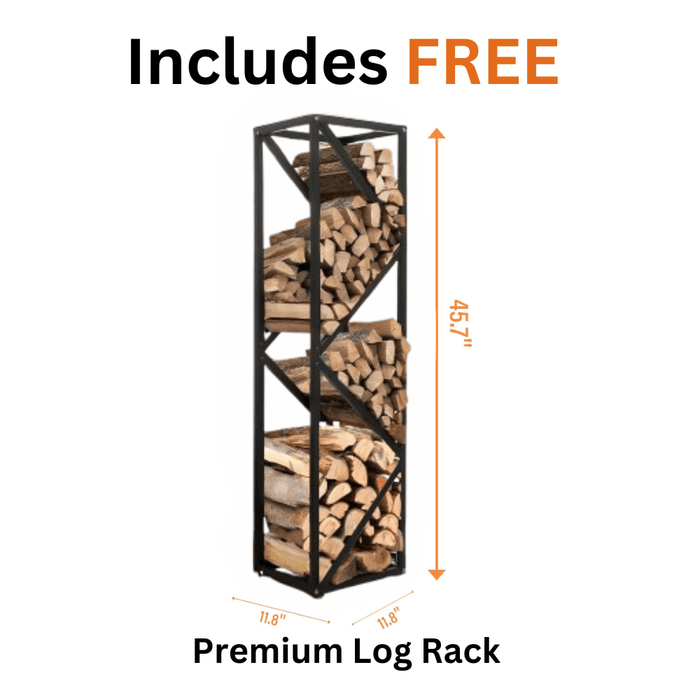

Get a FREE premium log rack with your purchase!
-
Compact, Space-Saving Design (11.8"D x 11.8"W x 45.7"H)
-
Adjustable Feet for Stability
-
Versatile Storage Compartments
-
Modern Geometric Aesthetic
-
Premium Build & Easy Assembly
Description
This trio set includes everything needed for a quick and professional installation, so why not take advantage of the best deal? Medium in size, this insert is truly powerful and will revive your old masonry fireplace while warming the interior of your home.
Equipped with a secondary combustion system unmatched on the market, in addition to being non-catalytic, it deploys up to 65,000 BTU/h, while having a very low carbon footprint; only 1.26 g/h! Included with the unit: a 29 "x 44" black faceplate, UL/ULC approved venting components (35' liner kit) that are made entirely of premium grade stainless steel.
A fresh air intake kit and a rigid fire screen are available as options.
Features
- Average particulate emissions rate: 1.26 g/h
- Blower included
- High-efficiency certified appliance: Yes, EPA 2020 approved
- Firebox lined with refractory bricks for better heat distribution
- Recommended heating area-ft² : 500 - 1,800
- Optimum efficiency: 78 %
- Steel thickness – top: 5/16"
Specifications
- Burn time up to 6 hours
- Up to 18'' logs
- 1.9 ft³ firebox
- Overall dimension (Height) 21 1/4"
- Overall dimension (Width) 27 1/4"
- Overall dimension (Depth) 22 3/8"
- Weight: 360 lbs
Included Accessories
- 29'' x 44'' faceplate, blower, ceramic glass, ash lip, air damper
Optional Add-Ons
- firescreen, fresh air intake
Get a Federal Tax Credit on Your Purchase
Did you know that you can claim a U.S. federal tax credit of 30% on your federal tax return for this purchase?
*Any installation must be done according to the data and drawings detailed in the owner’s manual.
Click here to Learn More
Click here to download Drolet's Tax Credit Certificate
Appliance Performance
| Fuel type |
Dry cordwood |
| Recommended heating area-ft² ()
|
500 - 1,800 |
| Overall firebox volume-ft³ |
1.9 |
| EPA loading volume-ft³ |
1.44 |
| Maximum burn time ()
|
6 h |
| Maximum heat output-dry cordwood (3)
|
65,000 BTU/h (19 kW) |
| Overall heat output rate < (3) (4)
|
15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
|
| Average overall efficiency (EPA cribs/Douglas fir) (4)
|
N.A. (HHV) (5)
|
N.A. (LHV) (6)
|
| Average overall efficiency (dry cordwood) (4)
|
70 % (HHV) (5)
|
75 % (LHV) (6)
|
| Optimum overall efficiency (7) (8)
|
78 % |
| Optimum heat transfer efficiency (9)
|
74 % |
| Average particulate emissions rate (1)
|
1.26 g/h |
| Average CO (10)
|
58 g/h |
(1) This appliance is officially tested and certified by an independent agency.
(2) Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
() Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(3) The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
(4) As measured per CSA B415.1-10 stack loss method.
(5) Higher Heating Value of the fuel.
(6) Lower Heating Value of the fuel.
(7) Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
(8) Optimum overall efficiency at a specific burn rate (LHV).
(9) The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
(10) Carbon monoxide.
General Features
| Combustion technology |
Non-catalytic |
| High-efficiency certified appliance |
Yes, EPA 2020 approved |
| Maximum log length |
18" |
| Log positioning |
Loading over width |
| Chimney diameter |
6" |
| Flue outlet diameter |
6" |
| Type of chimney |
Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) |
12' |
| Baffle type |
High quality vermiculite |
| Approved for a mobile home installation |
No |
| Door type |
Single, glass with cast iron frame |
| Glass type |
Ceramic glass |
| Glass surface – dimensions (Width X Height) |
15 3/4" x 9 3/4" |
| Glass air-wash system |
Yes |
| Premium quality blower included (CFM) |
144 |
| Overall dimension (Height) |
21 1/4" |
| Overall dimension (Width) |
27 1/4" |
| Overall dimension (Depth) |
22 3/8" |
| Door opening – dimension (Height) |
8 3/4" |
| Door opening - dimension (Width) |
17 1/4" |
| Firebox – dimension (Height) |
11 7/8" |
| Firebox – dimension (Width) |
19 5/8" |
| Firebox – dimension (Depth) |
13 1/2" |
| Firebox lined with refractory bricks for better heat distribution |
Yes |
| Stainless-steel secondary-air system improving gas combustion |
Yes |
| Adjustable threaded legs |
Yes |
| Steel thickness – body |
3/16" |
| Steel thickness – top |
5/16" |
| Fireplace opening – minimum (Height) |
21 1/2" |
| Fireplace opening – minimum (Width) |
27 1/2" |
| Fireplace opening – minimum (Depth) |
12 3/4" |
| USA standard (emissions) |
EPA |
| Canadian Standard (emissions) |
CSA B415.1-10 |
| USA standard (safety) |
UL 1482, UL 737 |
| Canadian standard (safety) |
ULC S628 |
| Tested and listed as per applicable standards |
By an accredited laboratory (CAN/USA) |
| Warranty |
Limited lifetime |
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
|
| |
Canada |
United-States |
| Clearance – top (measured from the platform on which the appliance is installed)** |
84" |
84" |
| Clearance – combustible side mantle to unit |
9" |
9" |
| Clearance – combustible top mantle to unit |
27" |
27" |
| Clearance – combustible side wall to unit |
16" |
16" |
| Clearance – minimum floor protection in front of the appliance |
18" |
16" |
| Clearance – from the top of the insert to the shelf |
27" |
27" |
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
Warranty
All Drolet products come with a Limited Manufacturer's Warranty. Depending on which part of the Wood Stove; Drolet offers a 1 Year -LifeTime warranty. It covers any problem with the product that affects its function. Please register your warranty on our brand's warranty registration page.
Installation and Operation Manual
Appliance Dimensions
