Blue Ridge 300-I Wood Insert by Englander
Dimensions: 17 1/2" L x 12" W x 4 3/4" H
- Flexible positioning for ideal fit
- Enhances heat and combustion
- Durable and easy to clean
- Maximizes firewood burning efficiency
- Supports logs for stable burning
- Prevents logs from rolling or shifting
- Increases overall fireplace safety
- Helps maintain consistent heat output
Get a FREE 5-Piece log rack with your purchase!
-
All-in-One Fireplace Tool Set
-
Large Firewood Capacity
-
Durable Steel Construction
-
Ergonomic Tool Storage Design
-
Ventilated Raised Base
- Product Dimensions 11.8"D x 15.8"W x 29.1"H
Description
The most adaptable wood insert is the Blue Ridge 300-I, which is perfect for heating spaces up to 2,100 square feet! Up to 75,000 BTU/h may be obtained from this non-catalytic appliance with only 2.3 g/h of particulate emissions. It's the ideal option if you want to modernize and optimize your brick fireplace!
Included
34" x 50" faceplate, air intake damper, and 144 CFM blower with thermodisc.
▪ High efficiency 2.4 ft³ firebox
▪ Up to 8 hours burn time
▪ Spring faceplate adjustment system which easily adapts to any type of hearth
▪ Steel top reinforced with a stainless steel heat shield
▪ Cast iron door and ceramic glass
▪ EPA certified
▪ Proudly made in USA
▪ Non-catalytic combustion system
▪ Qualifies for the 30% US tax credit

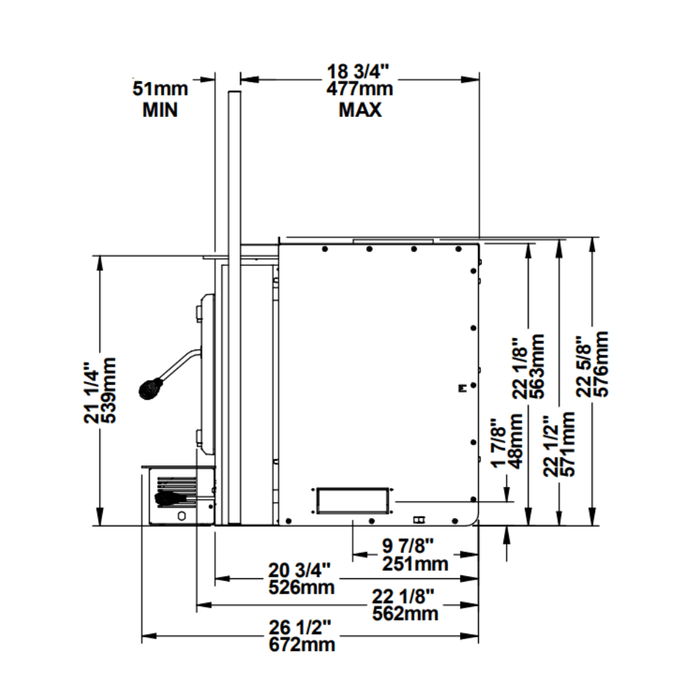

Dimensions
- Width- 50"
- Depth- 26 1/2"
- Height- 34"
Heating Specifications
- Maximum Burn Time - 8 hours
- Approximate Square Footage Heated - 500 - 2,100 ft².
- Flue Collar - 6.0 in. round
EPA and Safety Compliance Specifications
- EPA Compliance Status - Certified to comply with 2020 particulate emission standards using cordwood.
- EPA Test Standard - ASTM E3053‐17, EPA Alt 125, CSA B415.1‐10
- Particulate Emissions - 2.3 grams/hr
- CO Emissions - 69 g/h
- Heat Output Range - 14,200 - 45,000 Btu/hr
- Efficiency - 72% (HHV)
- Certified To - UL 1482‐2011(R2015) and ULC‐S627‐00(R2016)
Specifications
| Fuel type |
Dry cordwood (16" recommended)
|
| Recommended heating area(9) |
500 - 2,100 ft²
|
| Overall firebox volume |
2.4 ft³
|
| EPA loading volume |
1.95 ft³
|
| Maximum burn time(9) |
8 h |
| Maximum heat output-dry cordwood(4) |
75,000 BTU/h (22 kW)
|
| Minimum overall heat output rate(4)(5) |
14,200 BTU/h (4.16 kW)
|
| Maximum overall heat output rate(4)(5) |
44,500 BTU/h (13.04 kW)
|
| Average overall efficiency-dry cordwood (HHV)(5)(6) |
72% |
| Average overall efficiency-dry cordwood (LHV)As measured per CSA B415.1-10 stack loss method.(5)(7) |
77% |
| Optimum efficiencyAs measured per CSA B415.1-10 stack loss method.(1)(2) |
79% |
| Optimum heat transfer efficiency(8) |
76% |
| Average particulate emission rate(3) |
2.3 g/h |
| Average CO(10) |
69 g/h |
Clearance to Combustibles
|
Canada |
United States |
| Clearance - Combustible side wall to unit |
16" |
16" |
| Clearance - Combustible side mantle to unit |
9" |
9" |
| Clearance - Combustible top mantle to unit |
27" |
27" |
| Clearance - Top of the unit to a 12" combustible mantle shelf |
27" |
27" |
| Clearance - Base of the unit to ceiling** |
84" |
84" |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
Warranty
Limited 5-year warranty (see owner's manual)
Installation and Operation Manual
